OUR CAPACITY

CNC MACHINES

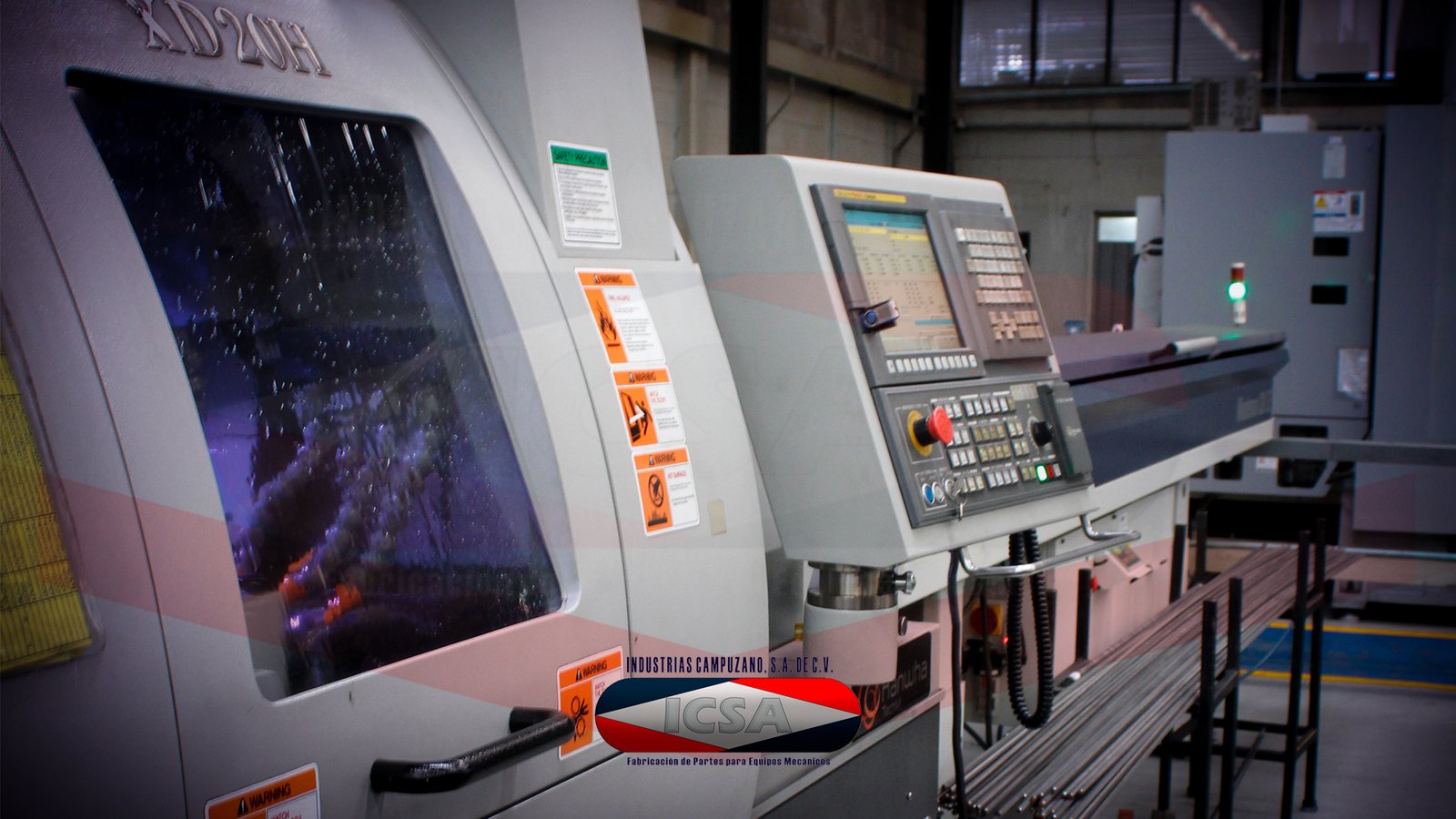

  • 1 Hanwha XD20H CNC Swiss type 20mm
    spind le bore, 7 axis and live tools

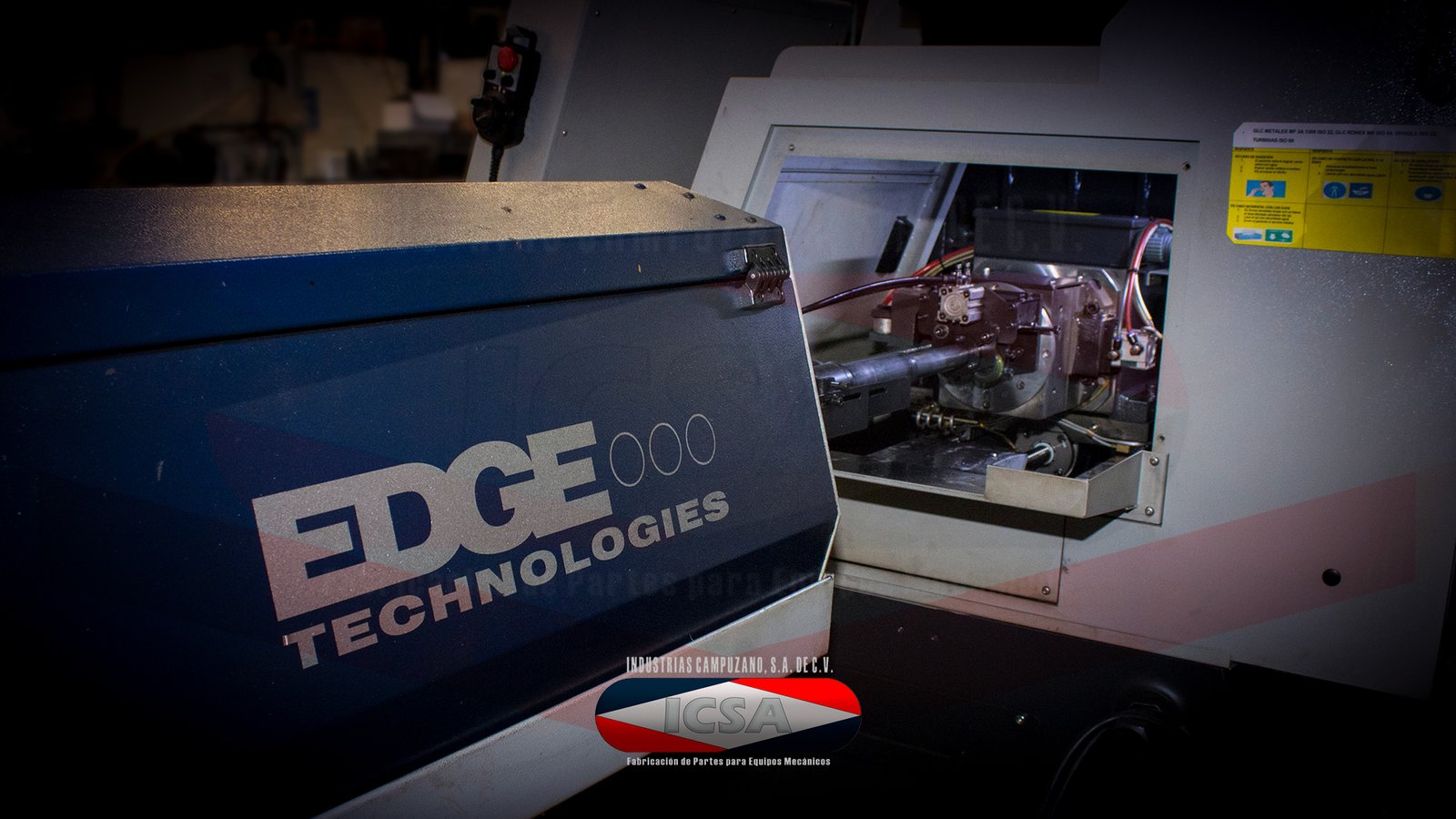

    + Edge MinuteMan 320 automatic bar feeder.

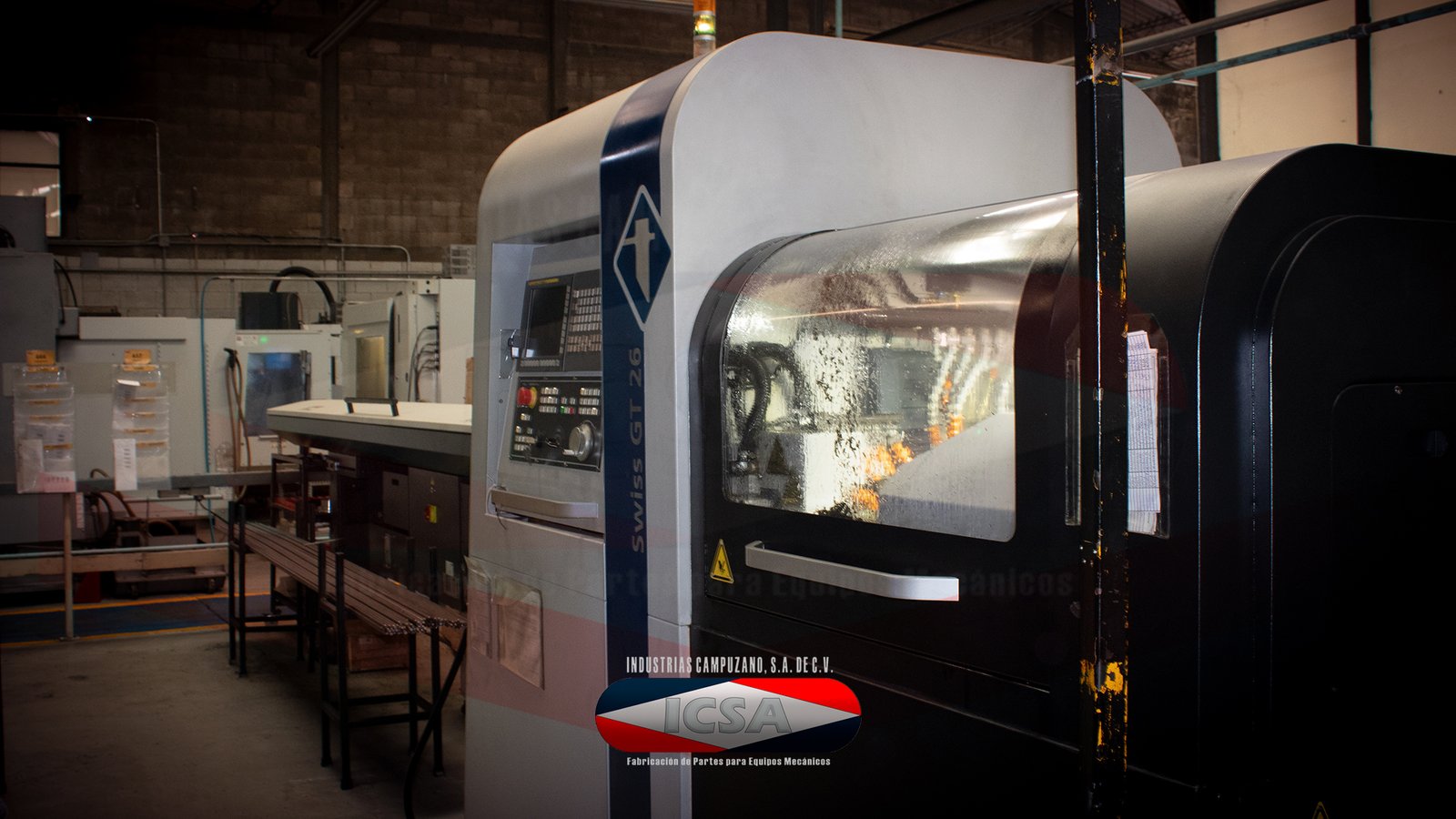

  • 1 Tornos GT26/6 CNC Swiss type 26mm spindle bore,
    8 axis and live tools + LNS GT326E.

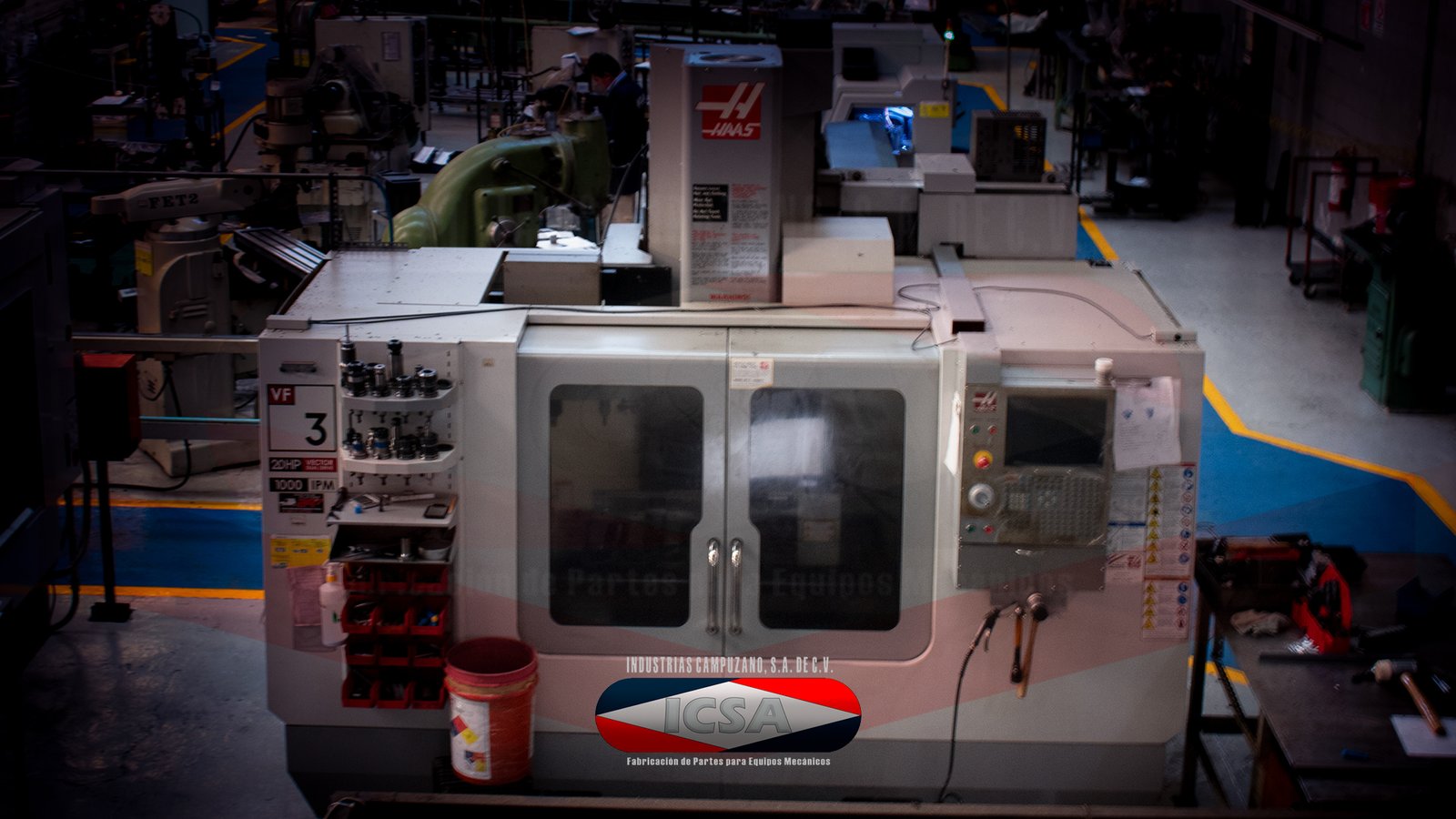

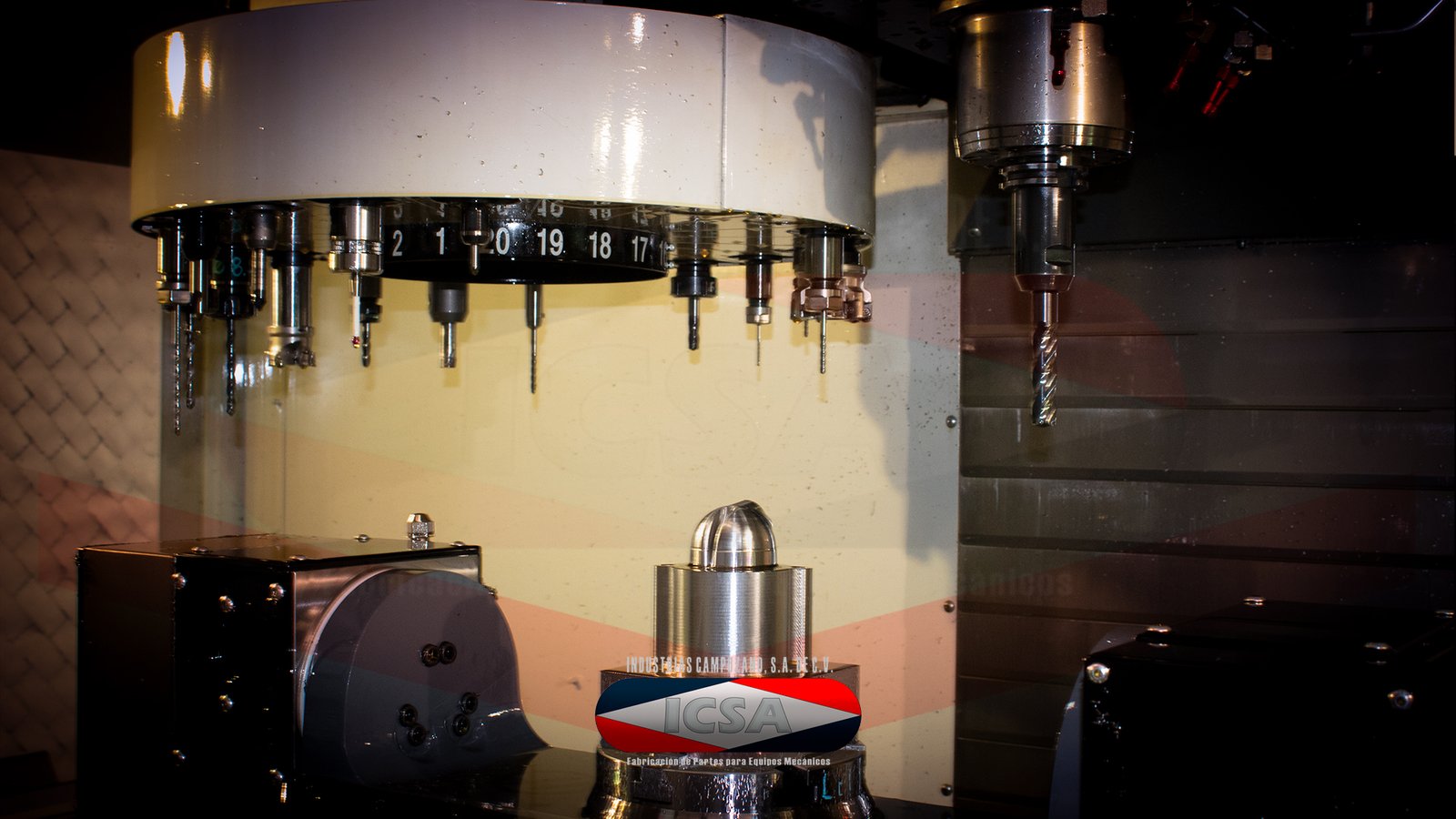

  • 1 Haas VF-3 + 5 axis trunion table TR160.
  • 1 Haas VF-3 + 4 axis rotary HRT210.
  • 1 Haas TM2P + 4 axis rotary HRT210.
  • 1 DMTG LATHE MOD CKE6150Z 16” x 40”.

GRINDING MACHINES

  • 2 Centerless Grinding KHC63 63 mm diam max capacity.
  • 1 Overbeck Universal (ID/OD) Grinding.
  • 2 WMW Universal (ID/OD) Grinding.
  • 1 Techniompex automatic ID grinding.
  • 1 Surface Grinder 6”x18".
  • .

CONVENTIONAL MILLING

  • 1 Liberty Grantry Milling machine 6.00 mts.
    x 2.80 mts. x 1.20 mts Heindenhain digital Read outs XYZ.

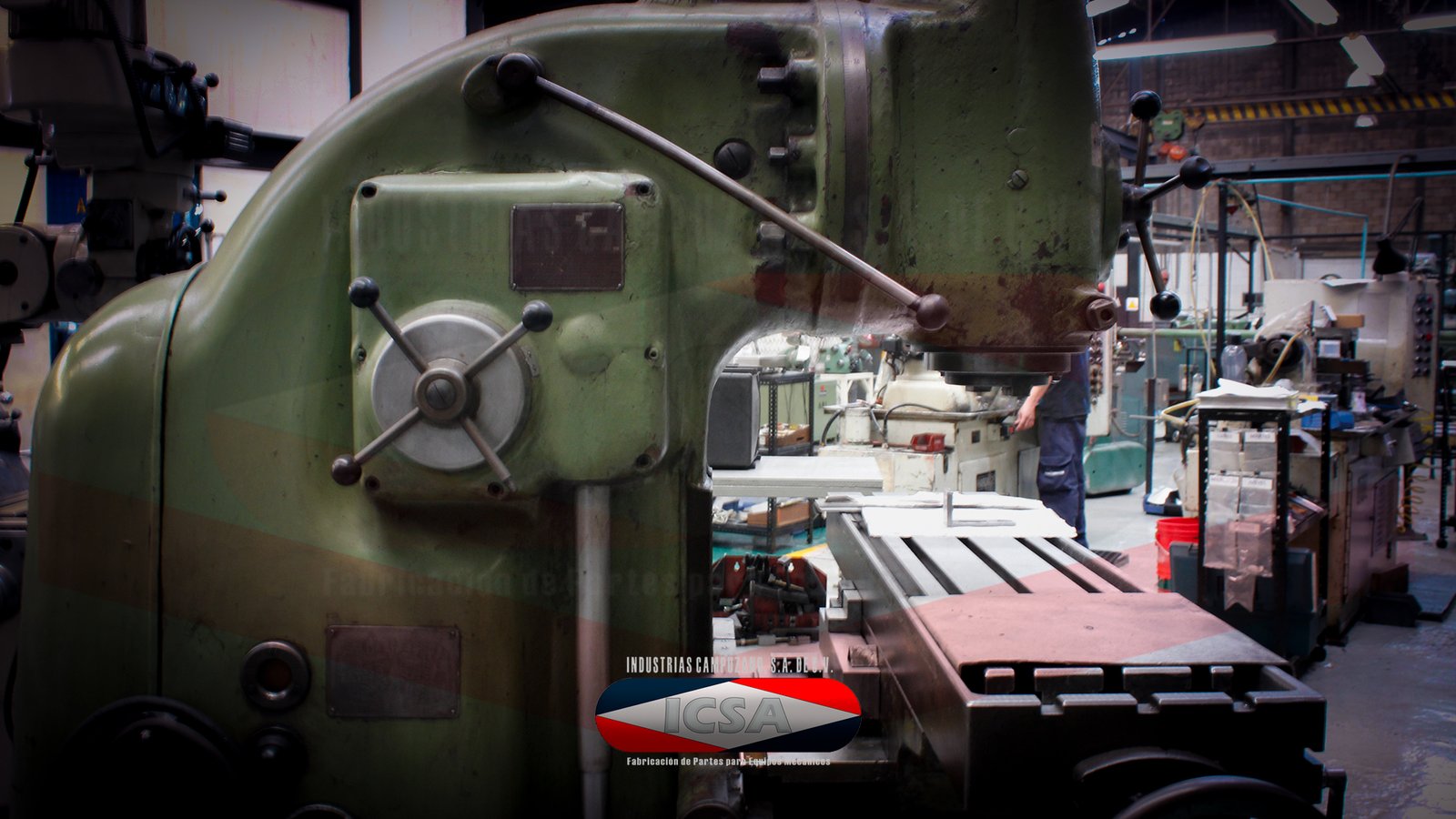

  • 1 Tos Vertical Milling No. 3.
  • 2 Kenta Turret Milling (Bridgeport type) 10”x40” Heidenhain digital read outs X Y Z.
  • .

DRILLING MACHINES

  • 1 Tos Radial drill 1 meter arm.
  • 1 Tos Column drill.
  • 4 Bench drill.

CONVENTIONAL LATHES

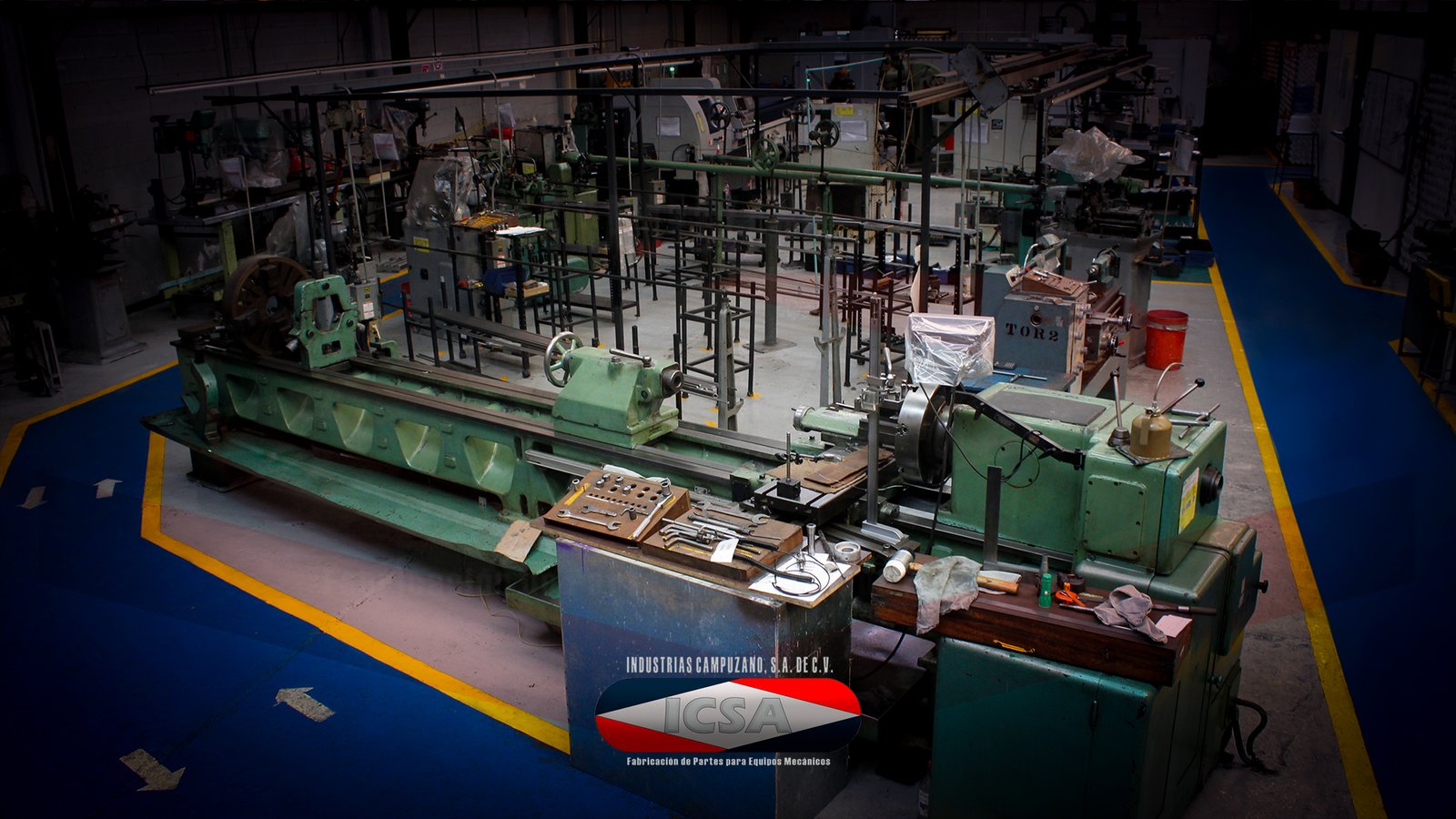

  • Tos Sn-50 22” x 100” (4 meter between centers).
  • Mc Lane 13” x 40”.
  • .

SCREW MACHINES

  • 2 Strohm m-125 (Swiss type) spindle bore 12.5 mm.
  • 2 Traub a-25 spindle bore 25 mm.
  • 2 Traub a-15 spindle bore 15 mm.
  • 1 Traub a-20 spindle bore 20 mm.
  • 2 Hardinge spindle bore 1”.

MATERIAL HANDLING EQUIPMENT

  • Yale Forklift Truck 5000 lb.
  • Manual Hand Stacker 1Ton.
  • Manual Pallet Truck 5,500 lb.
  • 3 Ton Crane over production area.

MEASURING
INSTRUMENTS

  • Mitutoyo PH-14 Profile Projector.
  • Height Master 12” Res. 0.00005”.
  • Rockwell C Hardness Tester.
  • Wilson superficial Hardness Tester (15N, 30N scale).
  • Wide range of external micrometers
    (Range from 0.275” – 8”).
  • Internal diameter micrometers.
  • 3 Granite plates 24” x 24”.

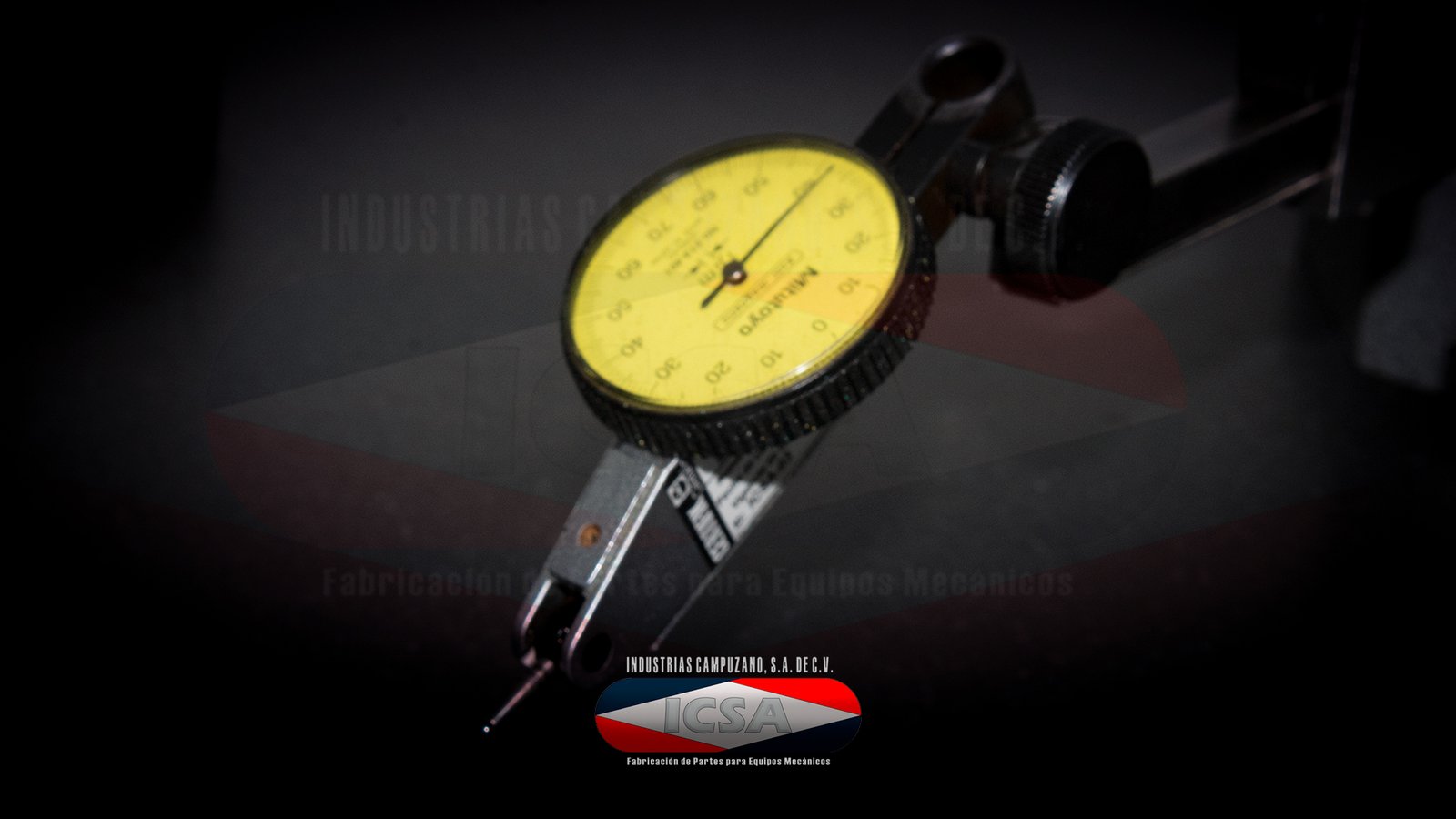

  • Dial indicators 0.001mm res.
  • Digital Calipers.
  • Federal Dimension Air Res. 0.2 µm.

AVAILABLE RESERVE HOURS





AVAILABLE HOURS
#55
89%
#415
85%
#414
78%
#627
78%
#444
33%
#657
33%

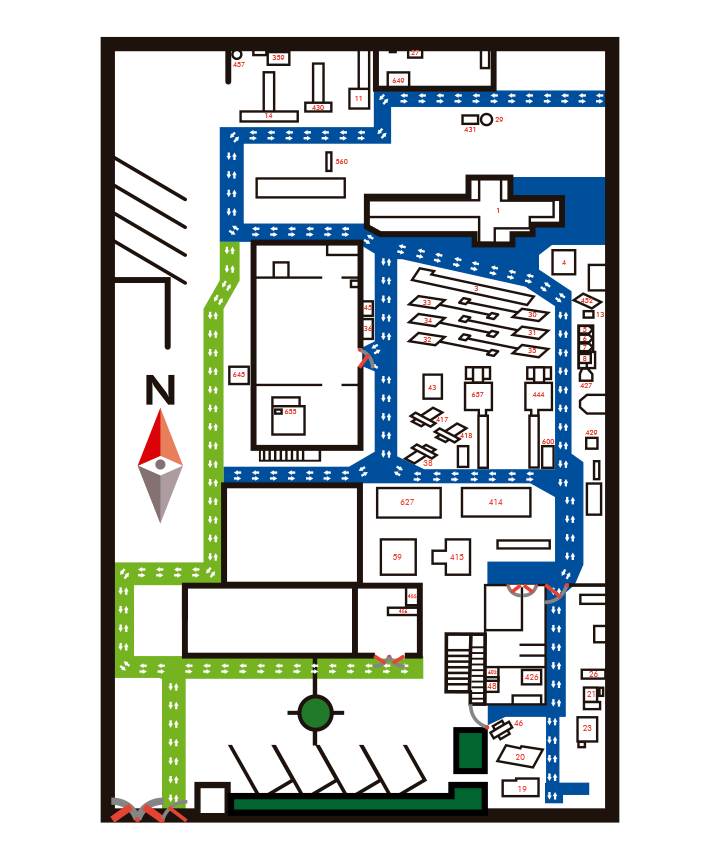

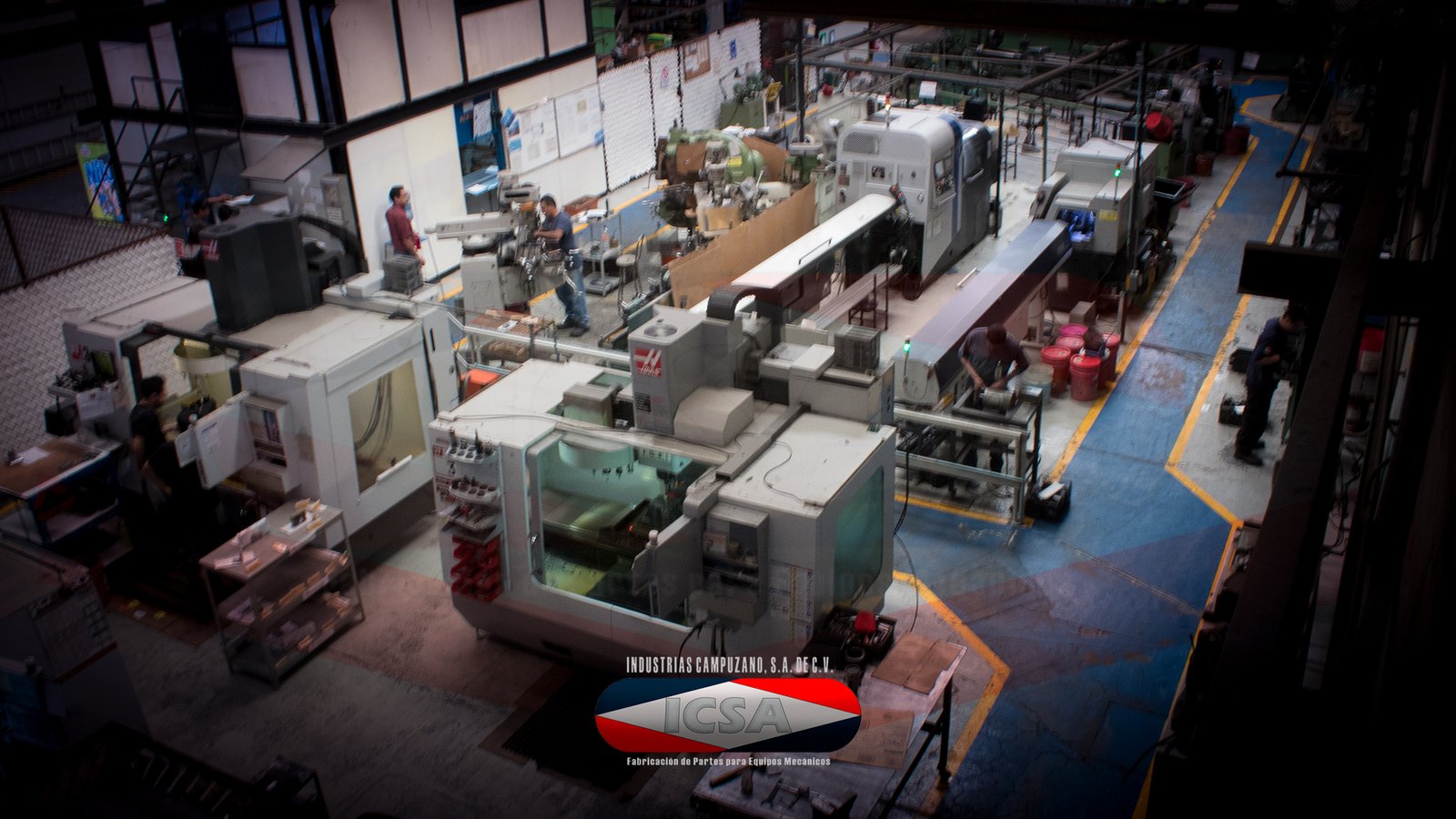

LAYOUT
